| Printing technology |
Exclusive MGI inkjet engine technology
Drop-on-Demand (DoD) inkjet application
Piezoelectric print heads in single pass printing |
|---|
| Coating thicknesses |
Depending on the print file and substrate used, the coating
thickness can vary from a traditional flat spot UV coating
of 3** μm up to 232 μm for 3D raised texture effects and a
tactile finish. |
|---|
| Production speed |
Up to 3,123 ISO B2 sheets per hour in all versions
The version Evo 75 can reach up to 4,200* ISO B2 sheets per
hour (in landscape) and up to 2,291 ISO B1 sheets per hour |
|---|
| Registration |
SmartScanner coupled with Artificial Intelligence (AIS) for a
real-time fully automated sheet-to-sheet registration process
No crop marks required |
|---|
| Formats |
Min: 42 x 29.7 cm
Max: 52 x 120 mm
75 x 120 mm |
|---|
| Printable areas |
Max: 51 cm / 74 cm |
|---|
| Substrate thickness |
Min: 135 gsm and not less than 150 μm before
printing & lamination
Max: 800 gsm and not more than 800 μm before
printing & lamination *** |
|---|
| Substrates |
Enhancement on most** matte or glossy laminated surfaces,
with or without aqueous coating, layered paper, plastic,
PVC and other coated materials. The used substrate needs
to be either coated or laminated. Otherwise the media will
absorb the varnish and the desired effect might be lost |
|---|
| Varnish on toner |
Spot 3D coat directly onto most** digital prints |
|---|
| UV coatings and capacity |
1 coating tank for both 2D & 3D applications
One high capacity tank of 18 litres
“On-the-fly” tank changeover possible during production
without any interruption and no waste |
|---|
| Automatic feeder |
High capacity feeder for paper stacks of up to 60 cm height
for 75 x 120 cm sheets ***
Approximately 4,000 sheets at 135 gsm |
|---|
| Pallet stacker |
Supports sheets of up to 75 x 120 cm size on pallet packaging |
|---|
| Paper path |
100% flat paper path
Vacuum feed system
Air feed system
Automatic double sheet detection |
|---|
| Front end system |
Intuitive touchscreen software management suite controlled
by a 27’’ monitor
Job cost calculator, image editor, queue manager and reprint,
camera and print head settings and reprint, dedicated
controller for equipment settings and technical data
Ethernet connection 10/100/1000 BT in RJ 45 |
|---|
| In-line UV dryer |
“On-the-fly” drying & curing via integrated UV lamps |
|---|
| Maintenance & remote technical support |
Automated inkjet head cleaning and wiping
Daily maintenance completed in less than 10 min
Mainly automated procedures
From cold start to production in less than 15 min
Remote troubleshooting & support via included web video
camera (high-speed internet connection required) |
|---|
| Operator panel |
Integrated user-friendly LCD touchscreen |
|---|
| Product Specifications - iFOIL-L |
|---|
| Production speed |
Up to 2,300 B2 landscape sheets per hour |
|---|
| Formats |
Up to 75 x 120 cm |
|---|
| Hot foil stamping area |
Max: 74 x 119 cm |
|---|
| Substrate thickness |
Min: 150 μm
Max: 600 μm (standard), 800 μm (optional) |
|---|
| Foil rolls |
Max. roll diameter and length: approx. 30 cm and from
400 to 2,000 meters of film
Up to 5 simultaneous film rolls on the same axis
(with a minimum of 10 cm per roll)
2 cores available Change for: 1 inch as standard and
3 inches as option |
|---|
| Dry air |
Requires air without oil at 6 bar (87 psi) & 24 m3/h (14 cfm) |
|---|

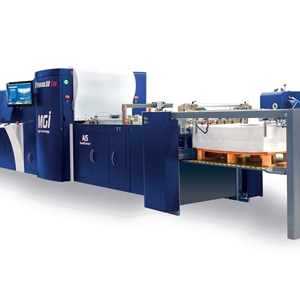

| Product Specifications - MGI JETVARNISH 3D EVOLUTION + IFOIL-L |
|---|
| Dimensions (L x W x H) |
Up to 12.72 x 1.86 x 1.84 meter (Evo 75 full options) |
|---|
| Weight |
Approx. 4,524 kg |
|---|
| Electrical requirements |
40 kW (63 A) at 400 Volts - 50/60 Hz + 20 kW (32 A) at
400 Volts - 50/60 Hz |
|---|
| Temperature |
18 to 30°C |
|---|
| Relative humidity |
between 30 and 50% (no condensation) |
|---|
| Options |
|---|
Corona1/2 substrates
treatment module |
In-line system to optimise varnish adhesion on complex
printed substrates |
|---|
Variable Data Printing
(VDP) |
– Full variable data (text, graphic, image) for both
2D/3D spot coating and hot foiling areas
– Integrated barcode (1D/2D) reader system & controller
– Raster Image Processor (RIP) as an option |
|---|
